ACHIELLE
SAM 3-SPEED CALIPER

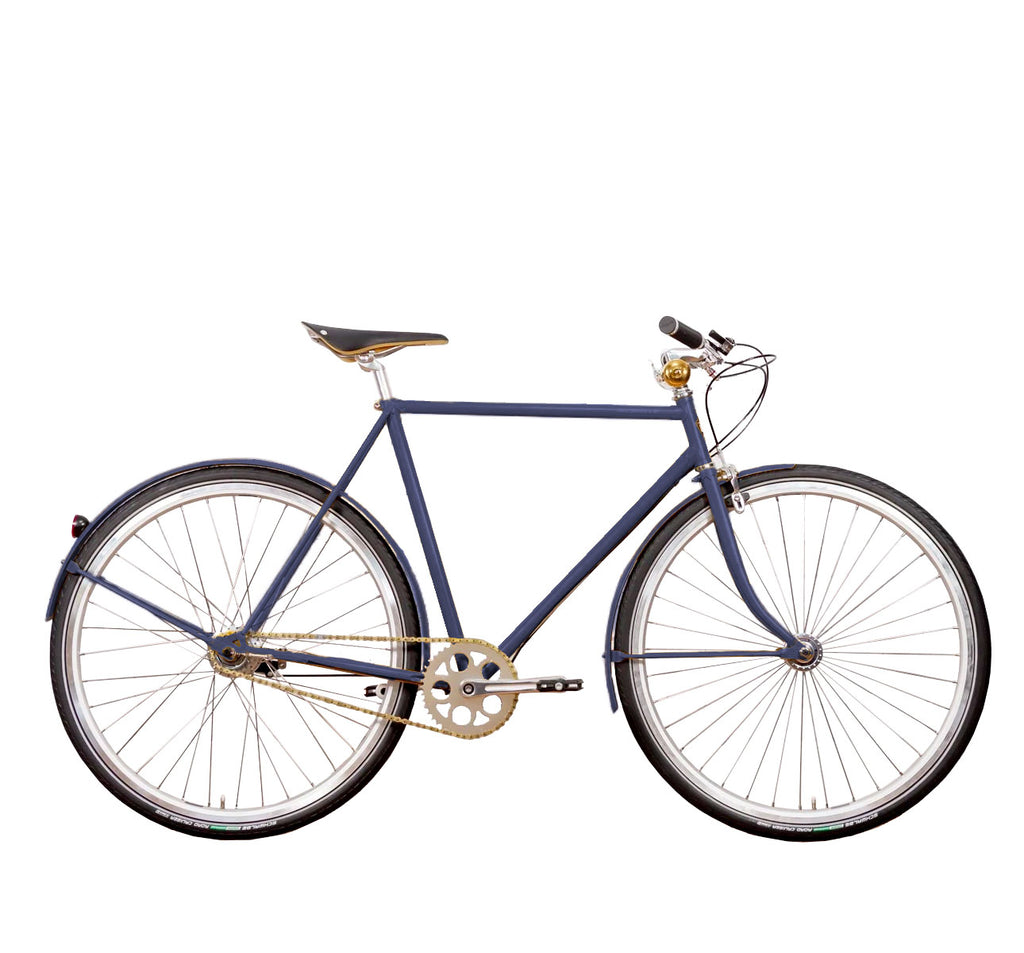

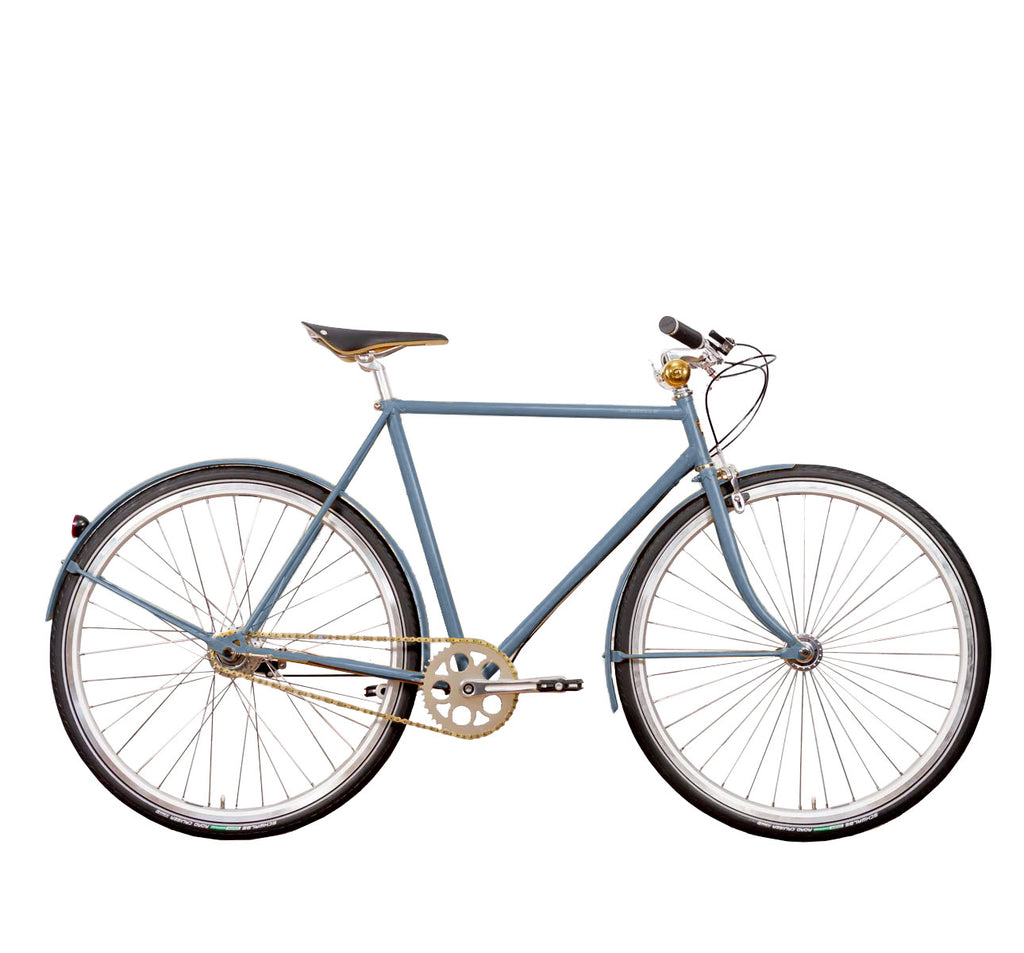

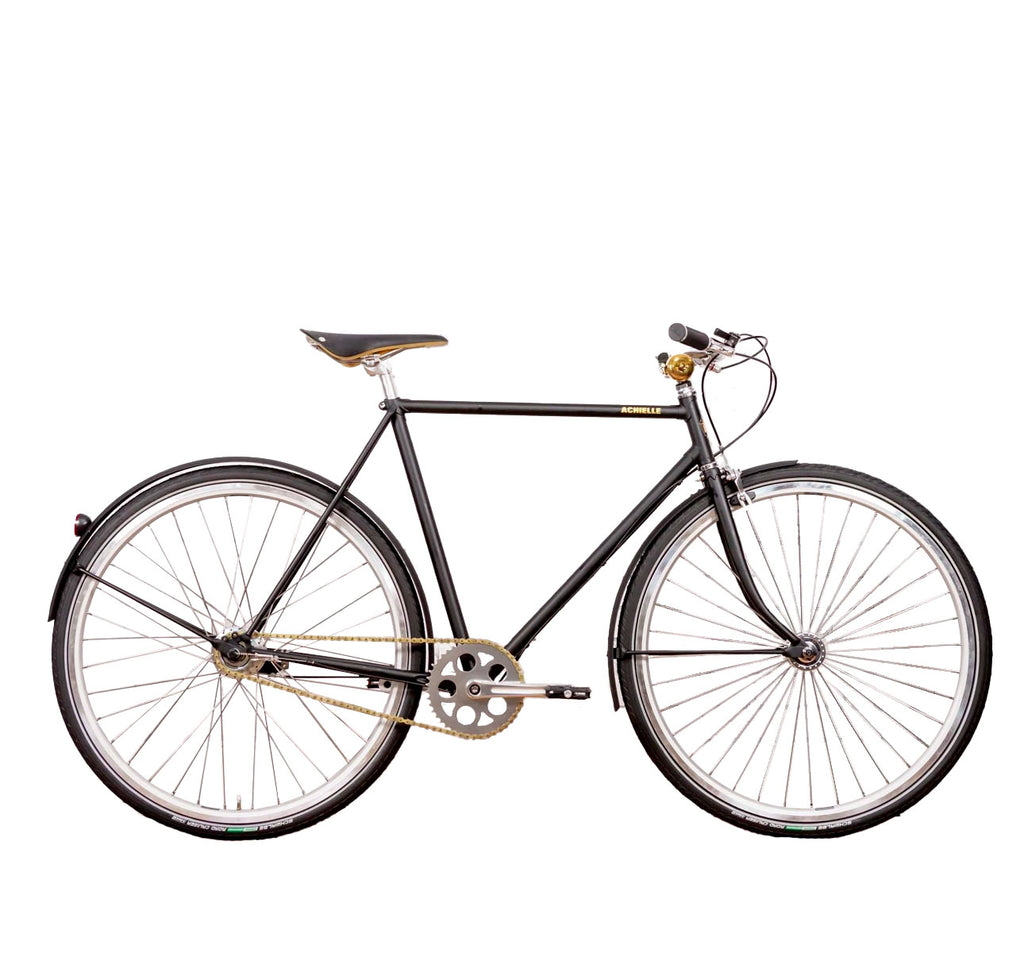

The Sam is a bike that puts the traditional Dutch bike on a diet, reducing weight and adding a sporty positioning to increase distance and speed over sprawl and hills, whether that's from Brussels to Paris or to Toronto. And yet the Sam stays true to the lived experience of living below sea-level: everything is designed to weather storms, floods and winter outdoor storage, from the internal gears (and rear drum brake) to the chip and rust resistant frame.
By choosing the components carefully, with an eye to durability but also lighter weight, the end result is a bike that is just a touch heavier than Simcoe bikes, but with much better finishes, quality handmade construction, and all at a very competitive price.
-
Genuine hand-made BELGIAN bike
- Sturmey Archer 3 Speed hub gears - Maintenance free simplicity
- Saccon front Caliper brake
- Herrmans grips - Made in Italy
- Achielle custom chain-guard
- Puncture resistant Schwalbe tires
- Beautiful chip- and rust-resistant paintwork
ACHIELLE SAM ROADSTER | |
---|---|
FRAME | Achielle CORUS Steel, hand-brazed, Powder Coated (made in Belgium) |
FORK | Achielle CORUS Steel, hand-brazed, Powder Coated (made in Belgium) |
HEADSET | 1" Alloy |
STEM | Alloy Eagle 25.4 |
HANDLEBAR | Alloy w/ slight sweep |
GRIPS | Herrmans (made in Finland) |
SEATPOST | Alloy Micro-adjust |
SEAT | Brooks Cambium C17 Black |
FRONT BRAKE | Saccon Caliper (made in Italy) |
REAR BRAKE | Sturmey Archer Drum |
BRAKE LEVERS | Dia Compe Classic |
SHIFTER | Sturmey Archer alloy thumb-shifter |
FRONT HUB | Sturmey Archer Hi-Flange - Sealed |
REAR HUB | Sturmey Archer 3-Speed |
SPOKES | 13G Stainless Steel, 36 Spokes |
RIMS | Rigida Alloy 36H eyeleted (made in Holland) |
TIRES | Schwalbe Delta Cruiser, w/Reflective |
BOTTOM BRACKET | Sealed Cartridge 68mm/105mm |
CRANKS | Sturmey Archer Alloy 46T |
CHAIN | Galvanized Steel |
COGSET | 1/2" x 1/8" 21T |
PEDALS | VP Sandpaper |
KICKSTAND | None |
CHAINGUARD & FENDERS |
Lepper (made in Holland) |
ACHIELLE SAM OPA ROADSTER |
FROM | TO |
---|---|---|
57CM | 5' 6" | 5' 10" |
61CM | 5' 11" | 6' 3" |
